Ultra 4K-60 Surgical Video Recorder | Medical Video Recorder | Laparoscopy Video Recorder | 4K-60FPS

Key Features
• HDMI 2.0 pass-through, comply with HDCP 2.2
• Support Game consoles like PS5, Xbox One & Xbox 360, Nintendo Switch & Wii U etc.
• Input: HDMI+USB-C (DP) 4K60
• Input and Output: 4k60
• Capture the same video resolutions as input:
-UHD: 4K60, 4K30, 4K25, 4K24
-FHD: 1080p60/p50/p30/p25/p24, 1080i60, 1080i50
-HD: 720p60, 720p50
-SD: 576p50, 480p60, 576i50, 480i60
• Capture format: H.264/H.265 High profile/AAC/MP4/TS
• Sampling rate: 48kHz PCM
• Record from your STB, Receivers, OTT Boxes, Google Stick, Roku, etc.
• Record MP3 files from Line in port(128kps/196kps/320kps)
• Bitrate in H.264 recording: MAX 50Mbps (MAX:4K60)
• Bitrate in H.265 recording: MAX 50Mbps (MAX:4K60)
• Modify the recording file name or customize the recording file name through OSD
• Video or music can pause recording
• Recording files can be stored in 16GB or unlimited
• Storage can be TF, USB, or hard disk (TF 512G/USB 1T/Hard Disk 4T or more)
• Support: FAT32/NTSF/exFAT/GPT/SSD or more
• Screenshot format: JPG
• Instant Playback & Pre-set schedule recording
• OSD control capture video (MP4 or TS) and audio (MP3)
• OSD control with multi-language
• UVC support for PC 4K60 USB3.0 (Windows/Linux/MAC)
• USB port supports cam and capture card

Compatible with Stryker 1688 4k, Olympus, Maxer, Storz, and many more in 4k & Full HD cameras.

I/O Connectors
• HDMI In & Out (HDMI 2.0)
• USB-C (DP) in
• Line In & Line Out & Microphone (3.5mm audio jack)
• USB 3.0 type A (for storage)
• TF Card (for storage)
• USB-C 3.0 (for PC)

Storage Device
• USB flash drive Max. 512GB; USB HDD Max. 8TB
• Supported Storage Format: FAT32, NTFS, exFAT, GPT, MBR, etc.
• File Size: FAT32：4G/file; NTFS & exFAT：32GB/file

Package Contents

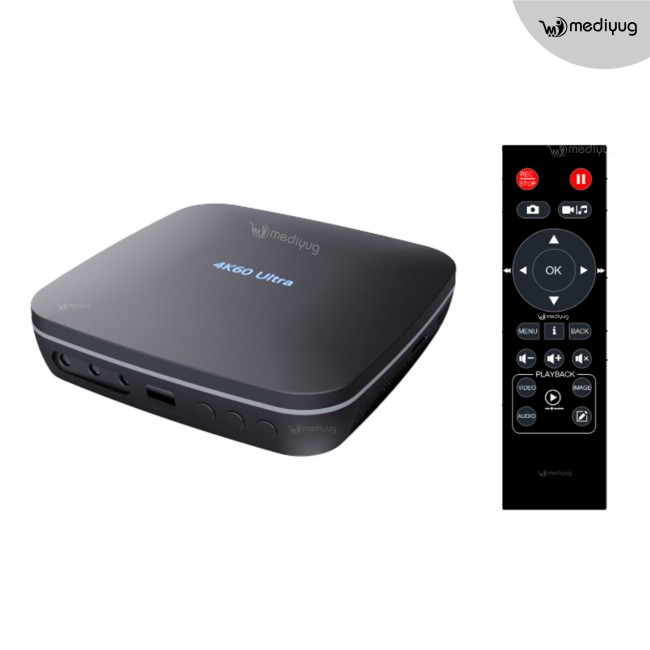

• Ultra 4K-60 Surgical Video Recorder
• Remote Control
• HDMI 2.0 cable and USB-C cable (0.8m)

• HDMI To DVI Connector
• Power 65W PD
• Quick Start Guide

Dimensions of Device (L x W x H): 11.7cm x 11.7cm x 2.6cm | Weight (g): 250g

Dimensions of Packing Box (L x W x H): 22.3cm x 16.2cm x 5.6cm | Weight (g): 580g

✔ 1 Year Warranty | ✔ Technical Support | ✔ Easy Installation
